Description

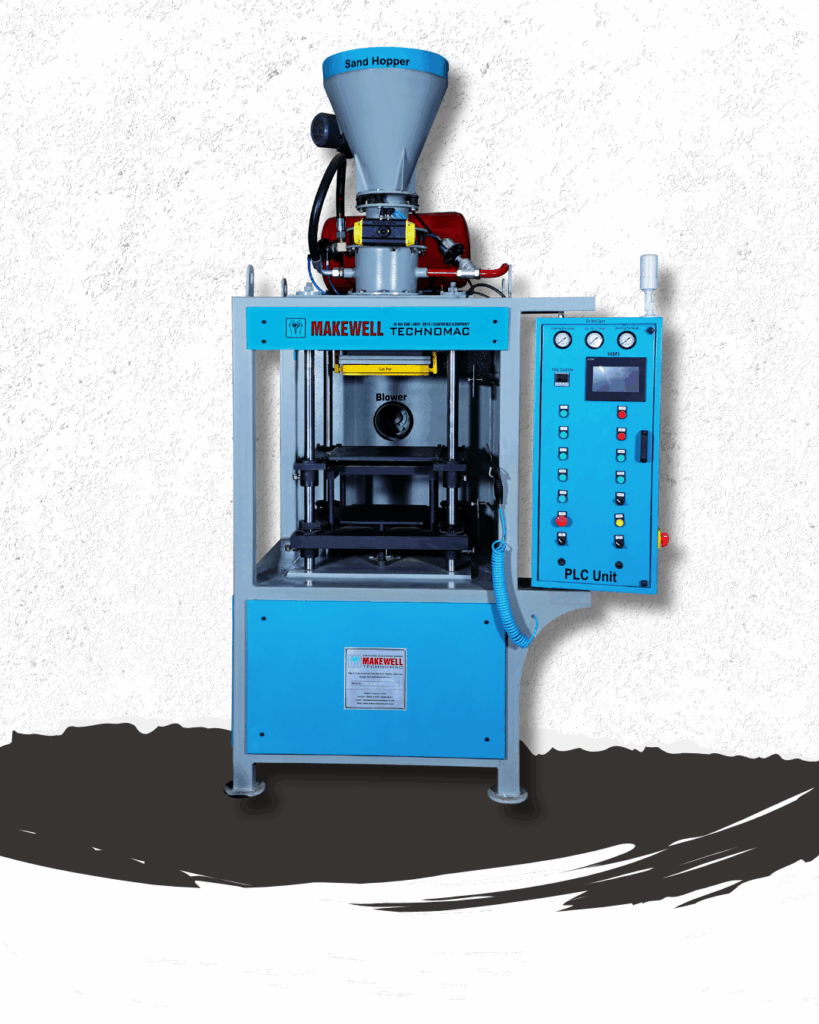

Cold Box Core Shooter Machine
Key Features
- Robust & Sturdy Structure Designed According To Dynamic & Static Load Calculation.
- Optimum Cycle Time For Core Produce.
- Easy To Clamping Core Box.
- Shooting And Gassing Through Latest Technique.
- In Built Gas Generator With Air As Carrier Medium.
- Automatic Core Ejection By Hydraulic.
- Go Green Technology Adopted. Throw Away Arrangement For Waste Gasses, dust Etc.
- Proper Vaporization Of Amine Ensured By Using Hot Dry Air.
- After Gassing Quick Exhaust Valve To Relies Excess Air.
- Maximum Space Available For Tooling Clamping
- Die Bottom Flates For Easy Clamping
Technical Specification
| SPECIFICATION | MODEL MTH-450-M | MODEL MTH-500-M | MODEL MTH-600-M |
|---|---|---|---|
| Parting | Horizontal | Horizontal | Horizontal |
| Shooting Capacity | Up To 7 kg | Up To 12 kg | Up To 25 kg |
| Tooling Size | 450X450x400 LxWxH mm | 500X500x600 LxWxH mm | 600X600x600 LxWxH mm |
| Tooling Clamping | Hydraulic | Hydraulic | Hydraulic |
| Shoot And Gas Blow Area | 300 mm | 250 x 250 mm | 400 x 400 mm |
| Sand Hopper Capacity | 100 kg | 125 kg | 175 kg |
| Core Box Weight | 300 kg | 350 kg | 400 kg |
| Double Shoot Facility | Yes | Yes | Yes |
| Die Bottom Flates | Yes | Yes | Yes |
| Electricity Requirement | 5 HP | 5 HP | 5 HP |
| Pneumatic Pressure Required | 4-5 kg/cm² | 4-5 kg/cm² | 4-5 kg/cm² |
| Amount of Amine | Auto | Auto | Auto |
| Ejection | Automatic | Automatic | Automatic |
| Dry Cycle Time | 16 Sec | 22 Sec | 30 Sec |
