Description

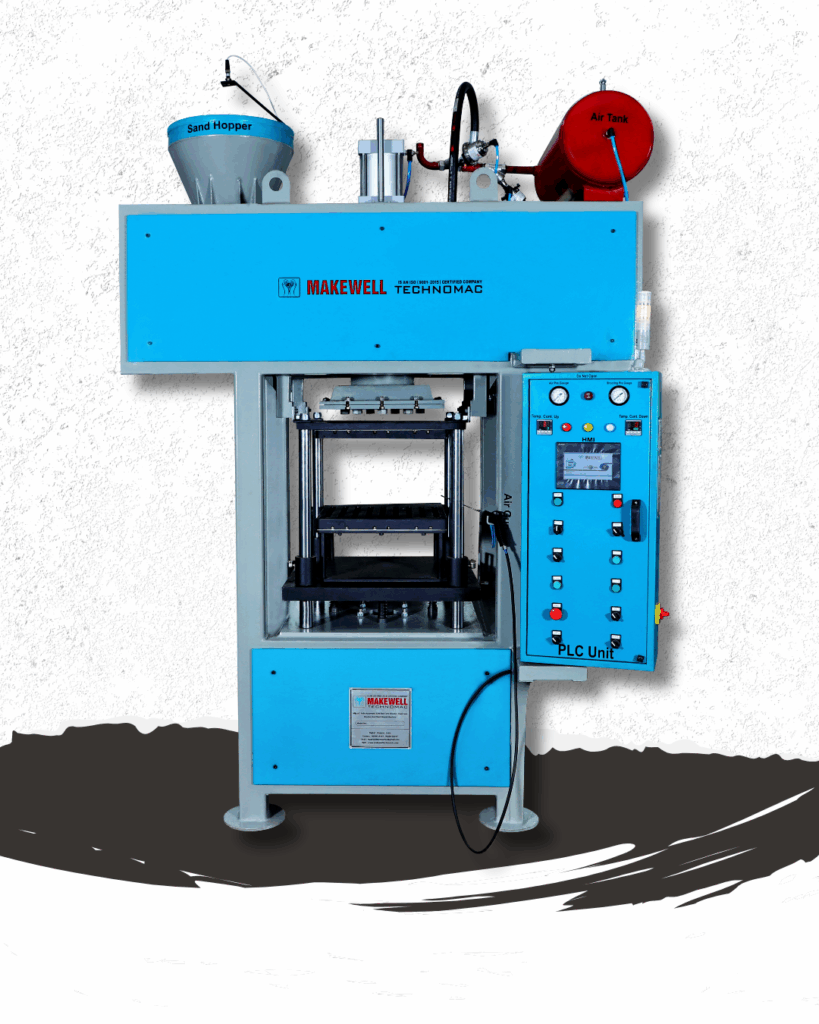

Shell Core/Mould Shooter Machine
Key Features
- Aesthetic And Accurate Design Of Machine.
- Heavy Duty Components Used In Machine For Long And Low Maintenance.
- With Heater Plate And Without Heater Plate Option Are Available
- Traveling Type Sand Magazine And Top Ejecting Trolley.
- Top And Bottom Ejecting Facility For Core Retrive.
- Vertical & Horizontal Parted Tooling Available In Different Model.
- High Process Reliability & Environmental Sustainability.
- Short Cycle Time Operation Controlled By PLC Technology.
- High Durability Core Production.
- Multiple Shooting Facility In Auto Cycle.
- Sand Level Sensor Provied.
- Individual Temp. Controller For Both Half Of Core Box.
Technical Specification
| SPECIFICATION | MODEL MTSH-500-M | MODEL MTSH-600-M | MODEL MTSH-7560-MT |
|---|---|---|---|
| Parting | Horizontal | Horizontal | Horizontal |
| Shooting Capacity (kg) | 12 | 25 | 50 |
| Shooting Type | Top | Top | Top |
| Tooling Size (LxWxH mm) | 500X500X500 | 600X600X600 | 750X600X600 |
| Shooting Point (Nos) | 17 | 21 | 29 |
| Sand Hopper Capacity (kg) | 100 | 150 | 200 |
| Bottom Ejection (mm) | Auto | Auto | Auto |
| All Operation | Automatic | Automatic | Automatic |
| Auto Sand Feeder | Optional | Optional | Optional |
| Electricity Requirement (Kw) | 15 | 20 | 28 |
| Pneumatic Pressure Required (kg./Cm²) | 5 To 7 | 5 To 7 | 5 To 7 |
| Dry Cycle Time (Sec) | 15 | 15 | 35 |
