Description

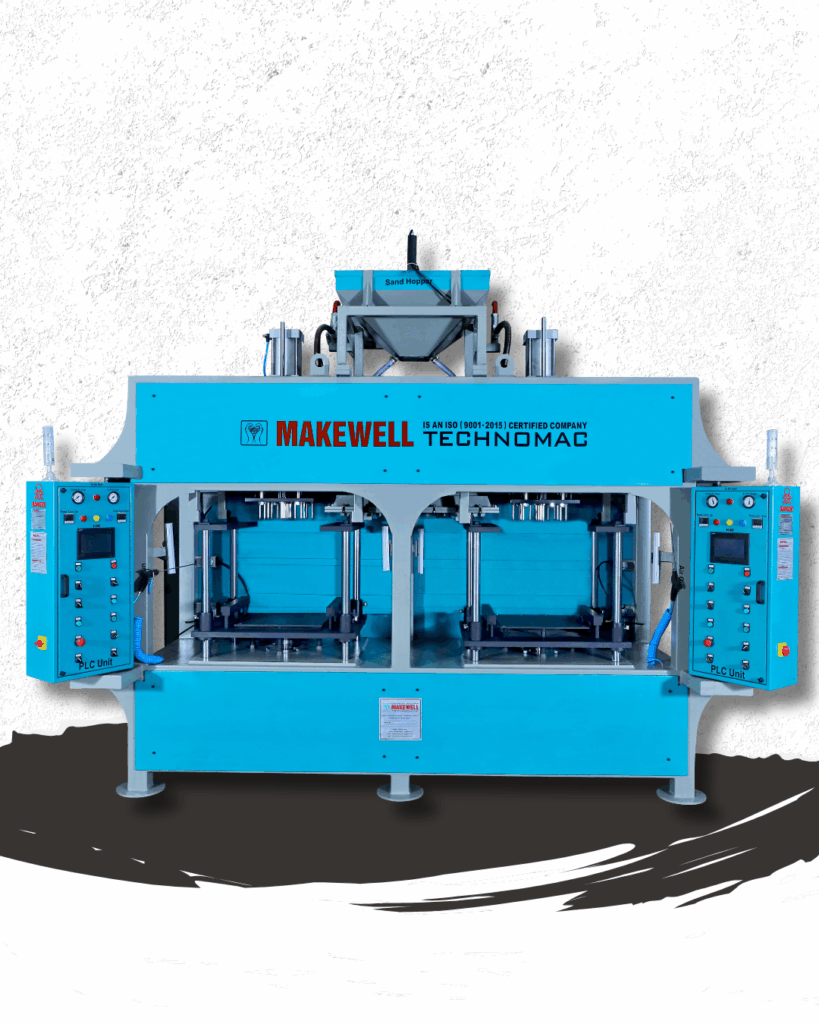

Shell Core/Mould Shooter Machine
Key Features
- Horizontal And Vertical Parted Shell Core Shooter.
- Shorter Machine Cycle Times Controlled By PLC Technology.
- With Heater Plate & Without Heater Plate Option Are Available
- Low Power Consumption Operating System
- Use For Heavy And Solid Core / Mould.
- Sand Level Sensor On Hopper Top To Monitor Sand Requirement.
- Day To Day Production Data Given For Record / Analysis
- Multi Blow Provision For Producing Heavier Core/Mould.
- Preset Counter Provide
- Individual Temp. Controller For Both Half Of Core Box.
- Hydraulic & Pneumatic Option Available
- Saving Of Space & Man Power
Technical Specification
| SPECIFICATION | MODEL MTSH-500-M2 | MODEL MTSH-600-M2 |
|---|---|---|
| Parting | Horizontal | Horizontal |
| Shooting Capacity | Up To 12+12 Kg | Up To 25+25 Kg |
| Shooting Type | Top | Top |
| Tooling Size | 500X500x500 mm | 600X600x600 mm |
| Shooting | Multi | Multi |
| Sand Hopper ( Common ) | 250 kg | 250 kg |
| Shooting Point | 17+17 Nos. | 21+21 Nos. |
| All Operation | Automatic | Automatic |
| Electricity Requirement | 15+15 kw | 20+20 kw |
| Sand Feeder | Optional | Optional |
| Pneumatic Pressure Required | 7-8 kg./Cm 2 | 7-8 kg./Cm 2 |
| Dry Cycle Time | 25 Sec | 25 Sec |
