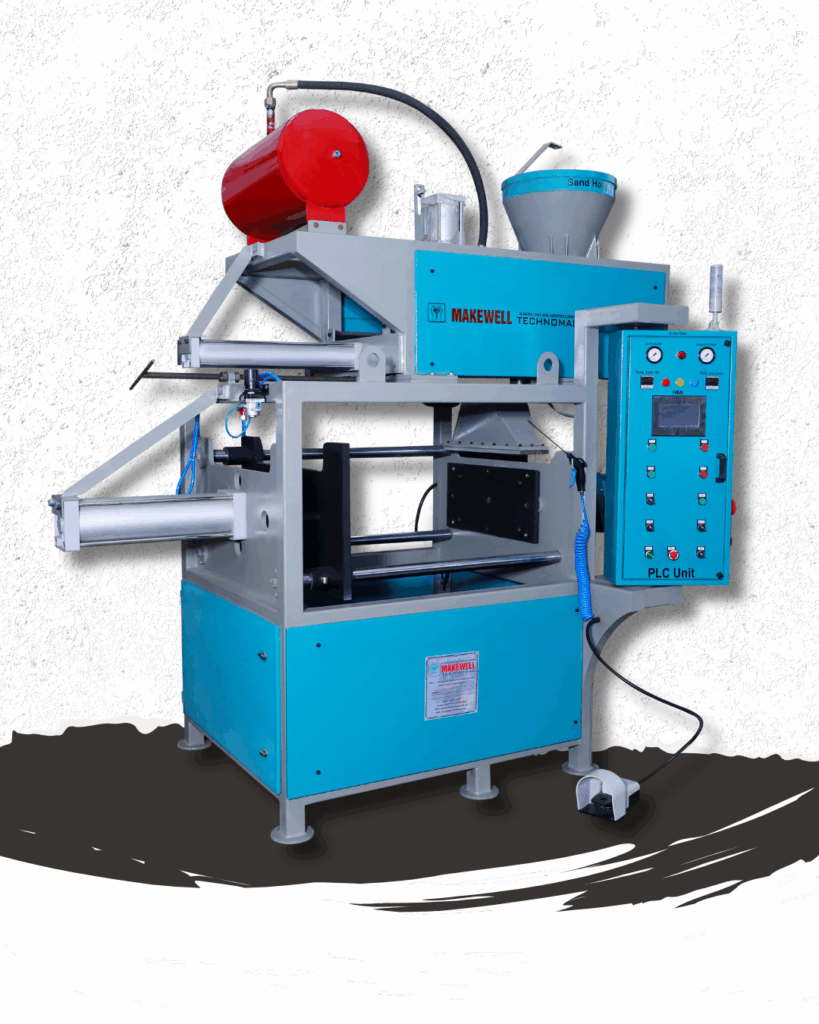

Shell Core/Mould Shooter Machine
Key Features
- Horizontal And Vertical Parted Shell Core Shooter.
- Auto Sand Feeder Available
- Ejection Bon Both Side – One Side Cylinder Operated And Other Side Spring Loaded.
- In Vertical Machine Swing Door On Fix Side, Opening Horizontally.
- Use For Heavy And Solid Core / Mould.
- Sand Level Sensor On Hopper Top To Monitor Sand Requirement.
- High Tooling Clamping Force.
- Shorter Machine Cycle Times Controlled By PLC Technology.
- Hydraulic And Pneumatic Option Available.
- Multi Blow Provision For Producing Heavier Core/Mould.
- With Heater Plate Without Heater Plate Option Are Available.
- Individual Temp. Controller For Both Half Of Core Box.
Technical Specification
| SPECIFICATION | MODEL MTSV-4030-M | MODEL MTSV-5030-M | MODEL MTSV-6040-MT |
|---|---|---|---|
| Parting | – | Vertical | Vertical |
| Shooting Capacity (Kg) | 8 | 12 | 25 |
| Shooting Type | Top & Multi | Top & Multi | Top & Multi |
| Tooling Size (LxWxH mm) | 400x300x300 | 500x400x300 | 600x500x400 |
| Shooting Area (mm) | 100×300 | 100×400 | 100×500 |
| Sand Hopper (kg) | 100 | 125 | 200 |
| Core Box Weight (kg) | 200 | 250 | 400 |
| All Operation | Automatic | Automatic | Automatic |
| Swing (Bottom Tilting) | No | Optional | Yes |
| Auto Sand Feeder | Optional | Optional | Optional |
| Core Retrieval Trolley | No | Optional | Optional |
| Electricity Requirement (kw) | 10 | 10 | 10 |
| Pneumatic Pressure Required (kg./Cm²) | 5-7 | 5-7 | 5-7 |
| Dry Cycle Time (Sec) | 20 | 20 | 20 |
| Bottom Mandril | Optional | Optional | Optional |
