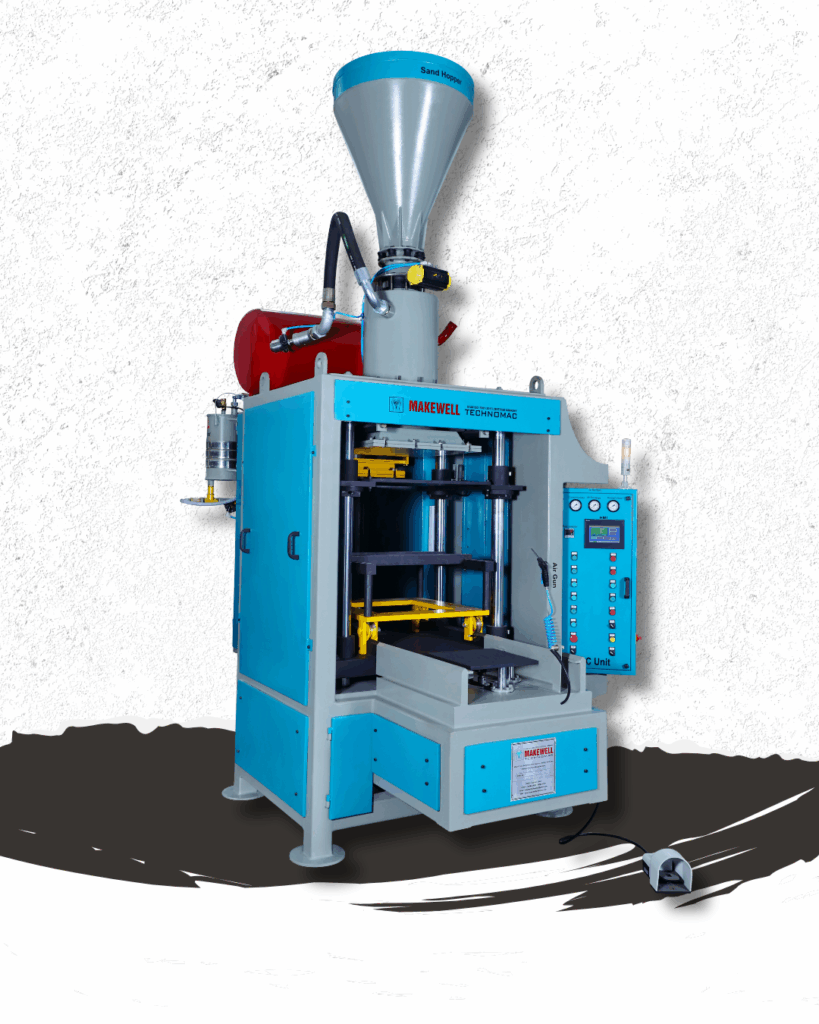

Cold Box Core Shooter Machine Horizontal With Trolly
Cold Box Core Shooter Machine is engineered to deliver precision, durability, and efficiency for modern foundry operations. Designed with advanced technology and a robust structure, it ensures smooth functioning, reduced downtime, and reliable performance for every project.
- Mandrel Trolley for Easy Tooling Clamping, Core Retrieval, and Smooth Bottom Ejection
- Mandrel Trolley for Easy Tooling Clamping, Core Retrieval, and Smooth Bottom Ejection
- In-Built Gas Generator with Hot Dry Air Vaporization & Go-Green Technology
Technical Specification
SPECIFICATION | MODEL MTH-600-MT | MODEL MTH-700-MT | MODEL MTH-7080-MT |
Parting | – | Horizontal | Horizontal |
Shooting Capacity | Up To 25 kg | Up To 50 kg | Up To 75 kg |
Tooling Size | 600x600x500 mm | 700x700x600 mm | 700x800x700 mm |
Tooling Clamping | Hydraulic | Hydraulic | Hydraulic |
Shoot And Gas Blow Area | 400×400 mm | 500×500 mm | 600×500 mm |
Sand Hopper Capacity | 175 kg | 200 kg | 300 kg |
Core Box Weight | 500 kg | 700 kg | 1000 kg |
Double Shoot Facility | Yes | Yes | Yes |
Electricity Requirement | 5-6 HP | 6-7 HP | 7-8 HP |
Pneumatic Pressure Required | 5-7 kg./Cm² | 5-7 kg./Cm² | 6-8 kg./Cm² |
All Operation | Automatic | Automatic | Automatic |
Core Retrieval Trolley | No | Yes | Yes |
Ejection Area | 600×600 mm | 700×700 mm | 700×800 mm |
Dry Cycle Time | 26 Sec | 35 Sec | 40 Sec |
